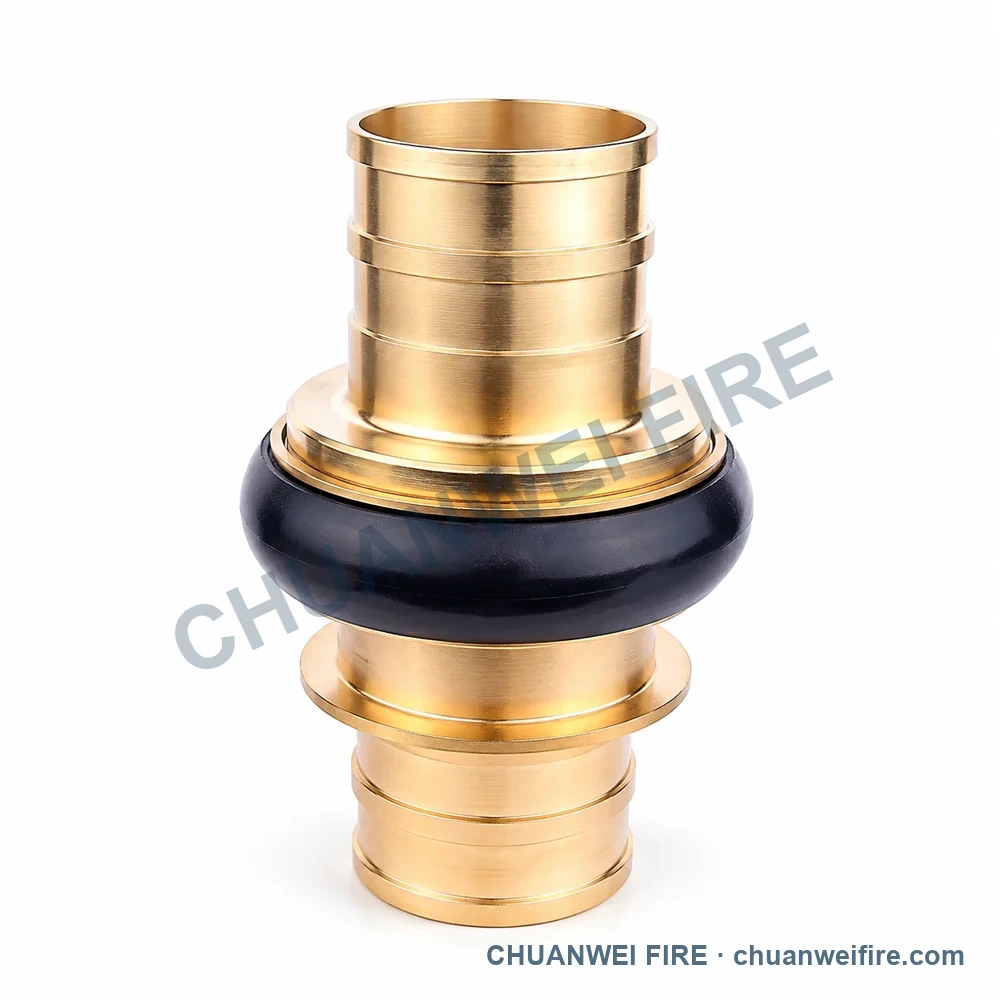

Sealed Fire Hose Coupling — MHS-012 / MHS-013
Connection or dimension references: inlet 1.5 in; outlet 38 mm · inlet 2.5 in; outlet 63 mm
5 configurations to compare
Fire Hose Couplings and Adapters
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Configuration images are illustrations. Request the product photo, connection and performance details for your selected configuration before ordering.
Available configurations

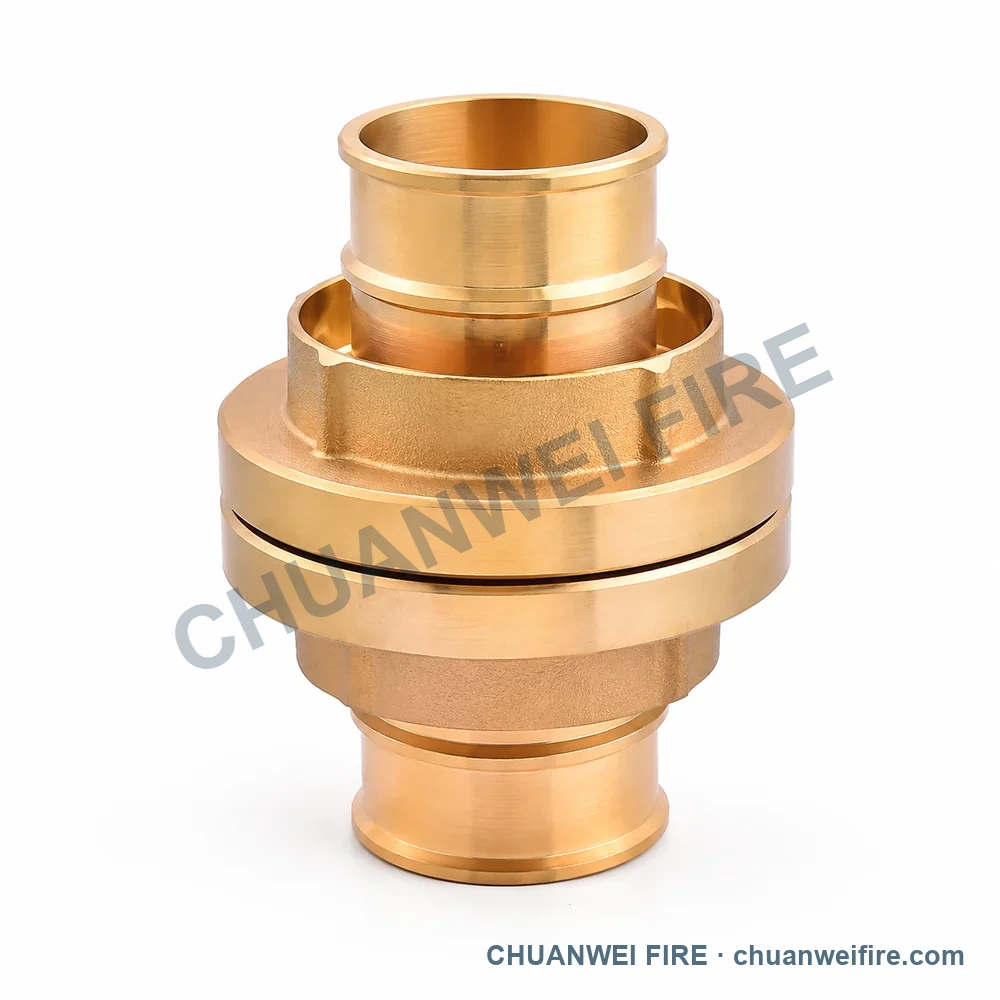

Hexagonal Ring-Type Fire Hose Coupling — SZ-012 / SZ-013 / SZ-014
Connection or dimension references: inlet 1.5 in · inlet 2 in · inlet 2.5 in

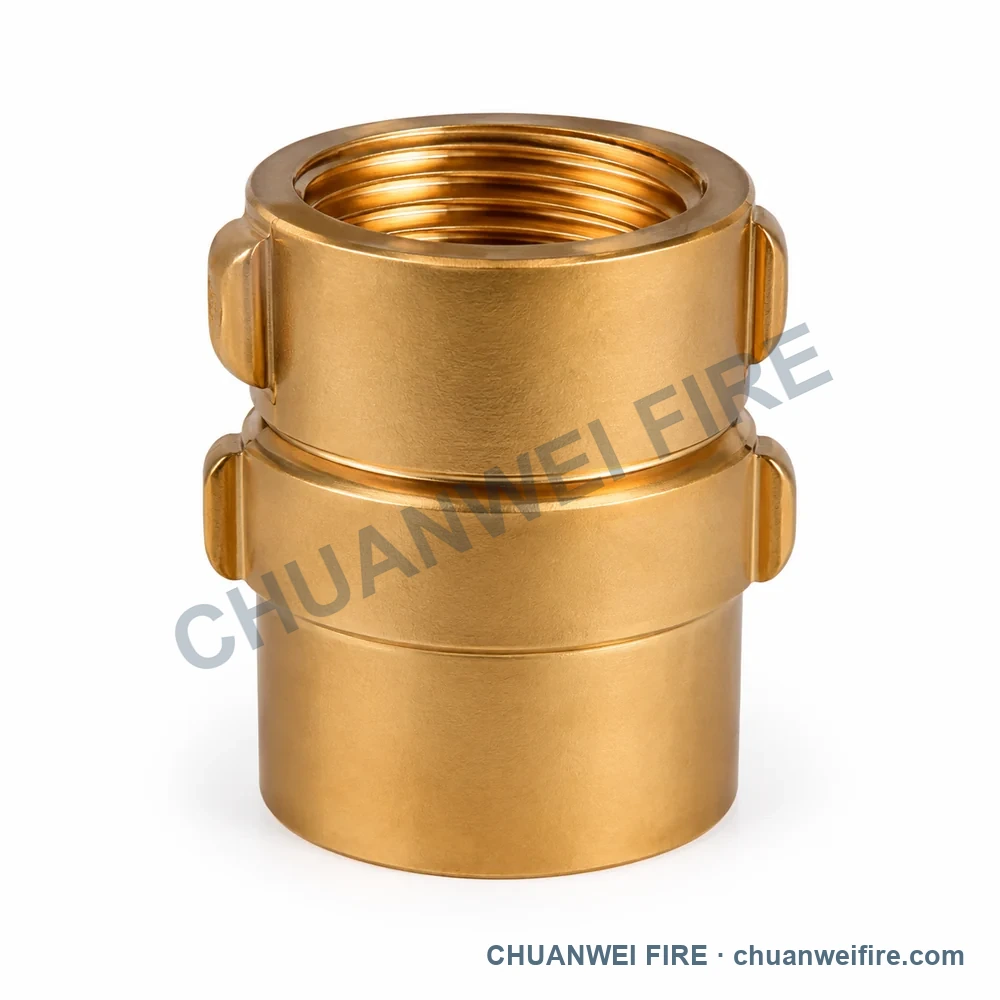

Short-Barrel Double-Lug Fire Hose Adapter — UHS-020 / UHS-021 / UHS-022
Connection or dimension references: inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm

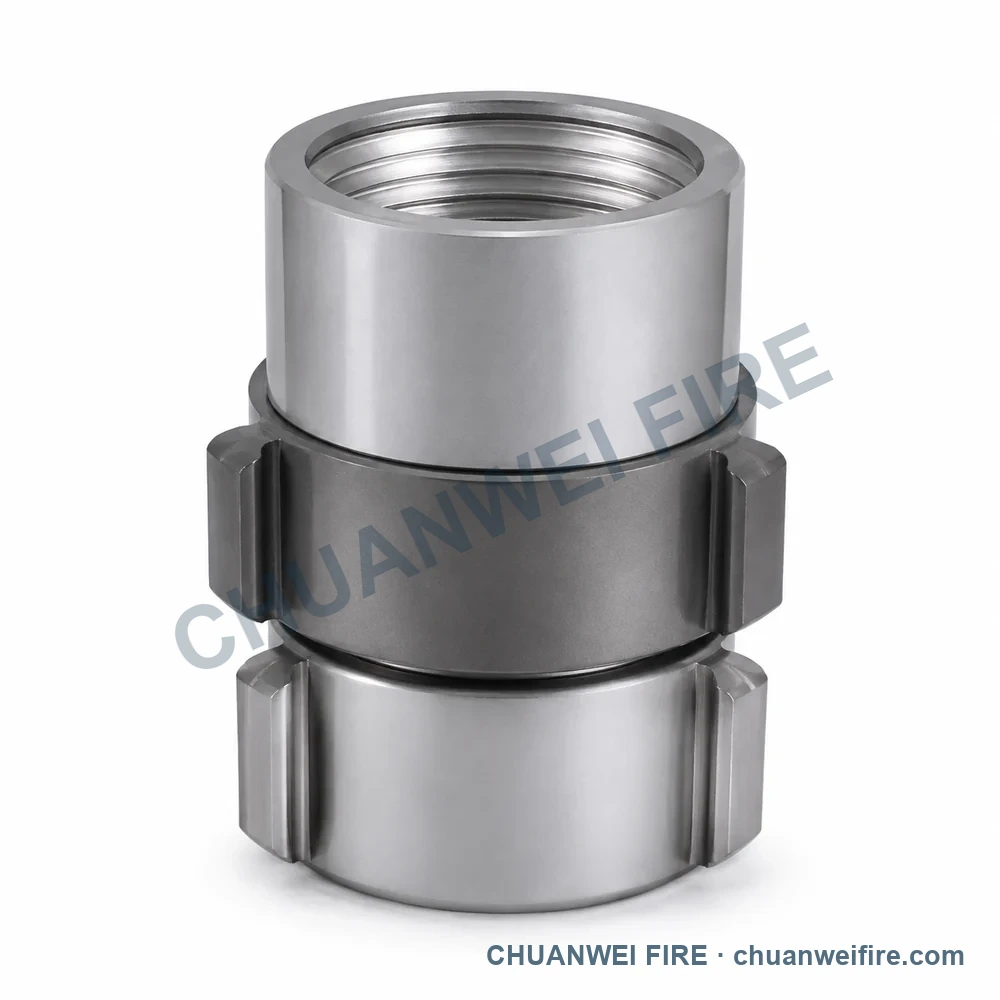

Double-Lug Fire Hose Adapter — UHS-030 / UHS-031 / UHS-032
Connection or dimension references: inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm

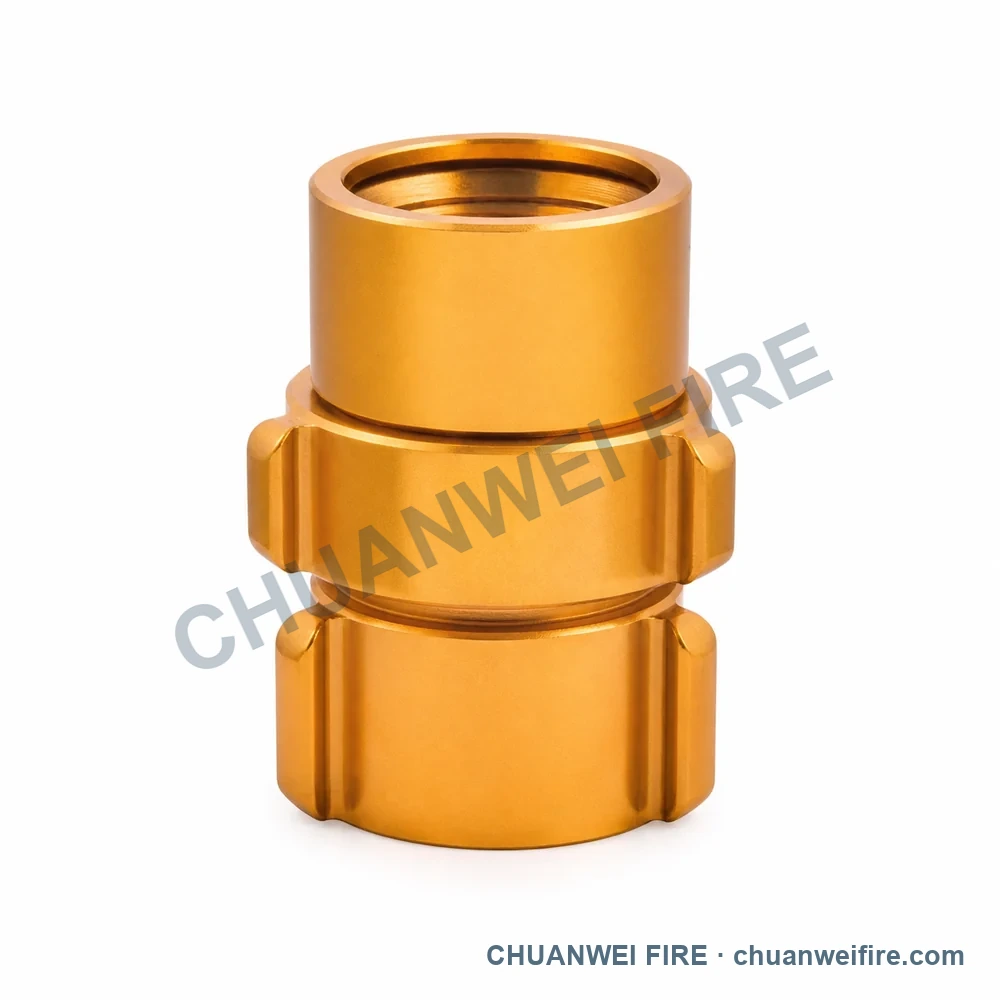

Double-Lug Fire Hose Adapter — UHC-012 / UHC-013 / UHC-014
Connection or dimension references: inlet 1.5 in NH · inlet 2 in NH · inlet 2.5 in NH
Configuration images
5 configurations to compare
Illustrations for comparing available configurations. Request the product photo and drawing for your selected configuration to confirm connections and dimensions.
Sealed Fire Hose Coupling — MHS-012 / MHS-0131 / 5
Specifications
Product selection details
Compare connection and dimension references to choose your configuration. Final order specifications are confirmed with the quotation.
- Product family
- Fire Hose Couplings and Adapters
- Available configurations
- 5 illustrated configurations
Available configurations
Configurations and connection references
Compare the configuration and connection or dimension references in each row.
| Configuration | Connection or dimension references |
|---|---|
| Sealed Fire Hose Coupling — MHS-012 / MHS-013 | inlet 1.5 in; outlet 38 mm · inlet 2.5 in; outlet 63 mm |
| Hexagonal Ring-Type Fire Hose Coupling — SZ-012 / SZ-013 / SZ-014 | inlet 1.5 in · inlet 2 in · inlet 2.5 in |
| Short-Barrel Double-Lug Fire Hose Adapter — UHS-020 / UHS-021 / UHS-022 | inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm |
| Double-Lug Fire Hose Adapter — UHS-030 / UHS-031 / UHS-032 | inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm |
| Double-Lug Fire Hose Adapter — UHC-012 / UHC-013 / UHC-014 | inlet 1.5 in NH · inlet 2 in NH · inlet 2.5 in NH |
Quotation confirmation
Confirm the configuration before production
Start with the configuration and quantity. Add size, connection, working pressure and destination when available; we will review the supply details with you.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Fire Hose Couplings and Adapters requirement
Start with the configuration and quantity. Size, connection and project requirements can follow.
