Fire Alarm Equipment
Fire Alarm Sounder Beacons
Tanda sounder beacons provide audible and visual fire alarm indication. TX3307 and TX3307A are separate model options with red housings; each requires its own base and wiring confirmation.
Provide the control panel model, protocol and existing device references so compatibility can be checked before supply.
Product gallery
Product views
Select an image to view the pictured product or configuration.
Specifications
Product specifications
The electrical, acoustic and dimensional specifications marked TX3307A apply to that model only. Select TX3307 and TX3307A separately.
- Product brand
- Tanda
- Alarm indication
- Audible and visual
- Housing appearance
- Red housing
- Model options
- TX3307 / TX3307A
- TX3307A — bus supply
- 24 V DC nominal; 15–28 V DC
- TX3307A — current
- Standby ≤0.4 mA; activated ≤3 mA
- TX3307A — sound level
- 75–105 dB(A) at 3 m directly in front, after stabilization
- TX3307A — flash frequency
- 1.0–1.8 Hz
- TX3307A — bus connection
- Non-polarized two-wire bus
- TX3307A — matching base
- TX3307-DZ
- TX3307A — dimensions including base
- 121 × 86 × 45 mm
- TX3307A — operating temperature
- 0 to +55 °C
- TX3307A — relative humidity
- ≤95% RH, non-condensing
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|

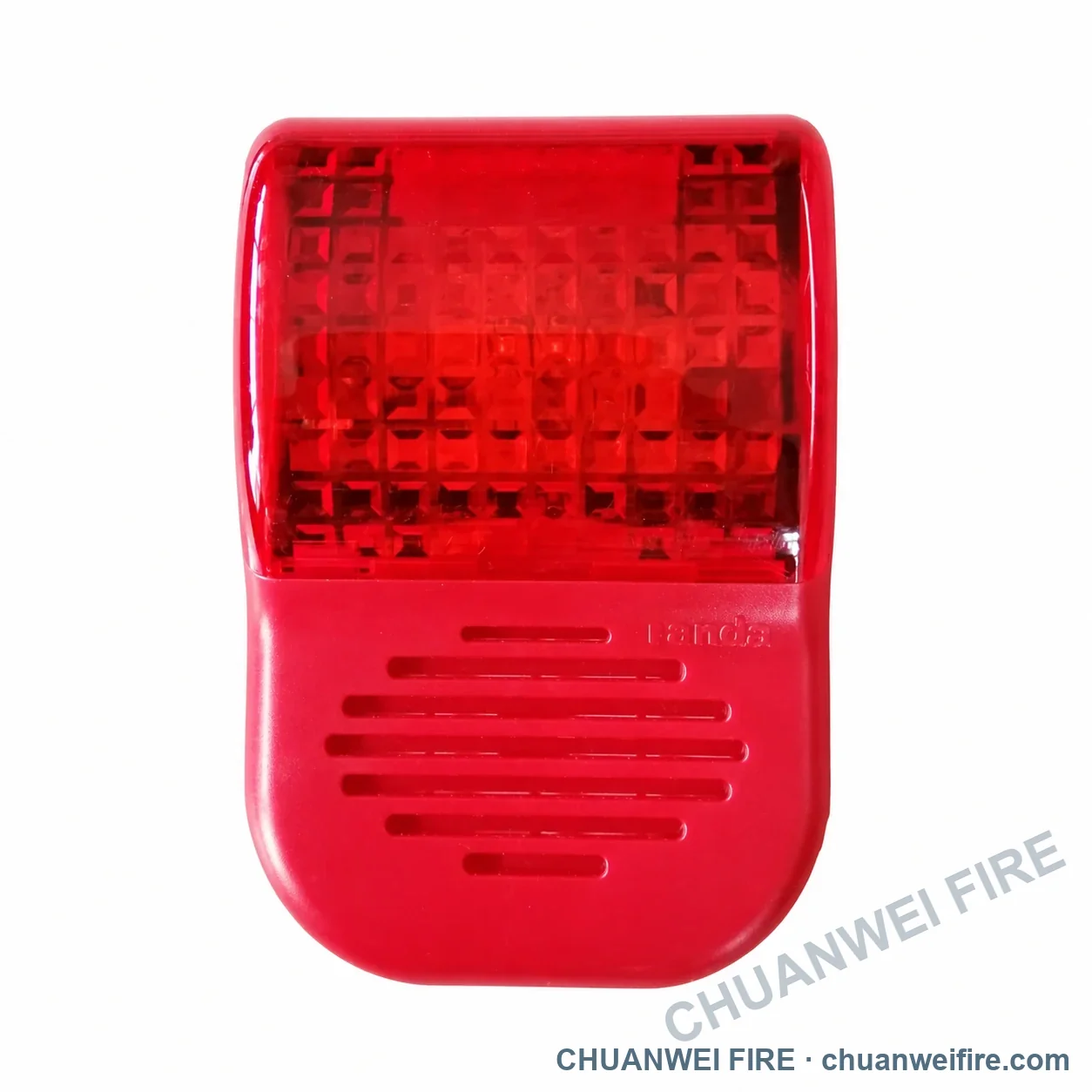

| Sounder beacon — TX3307 | TX3307 | Confirm the TX3307-specific base, wiring and panel compatibility. |

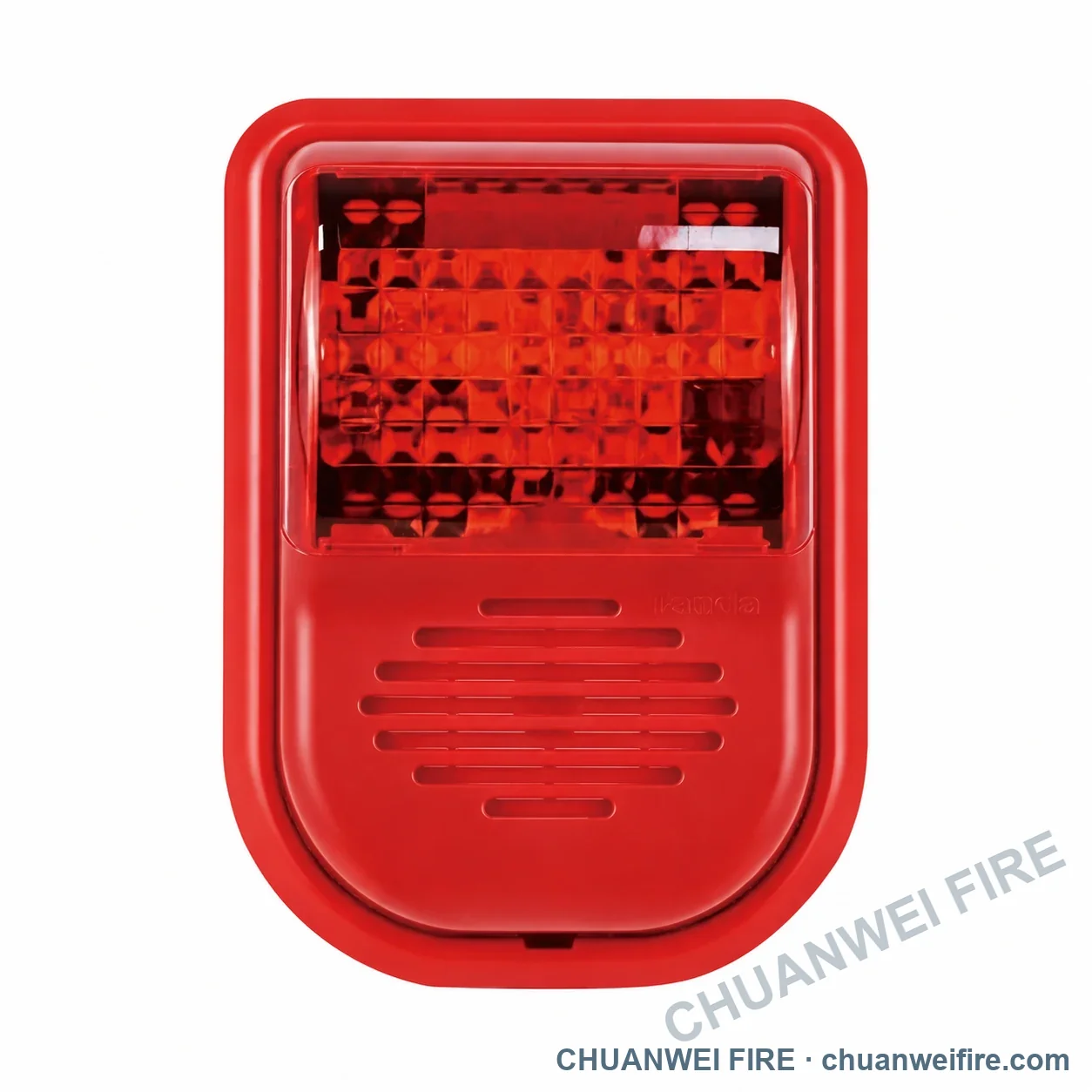

| Sounder beacon — TX3307A | TX3307A | Non-polarized two-wire bus, 24 V DC nominal, TX3307-DZ base. |
