Fire Alarm Equipment
Fire Alarm Input/Output Modules

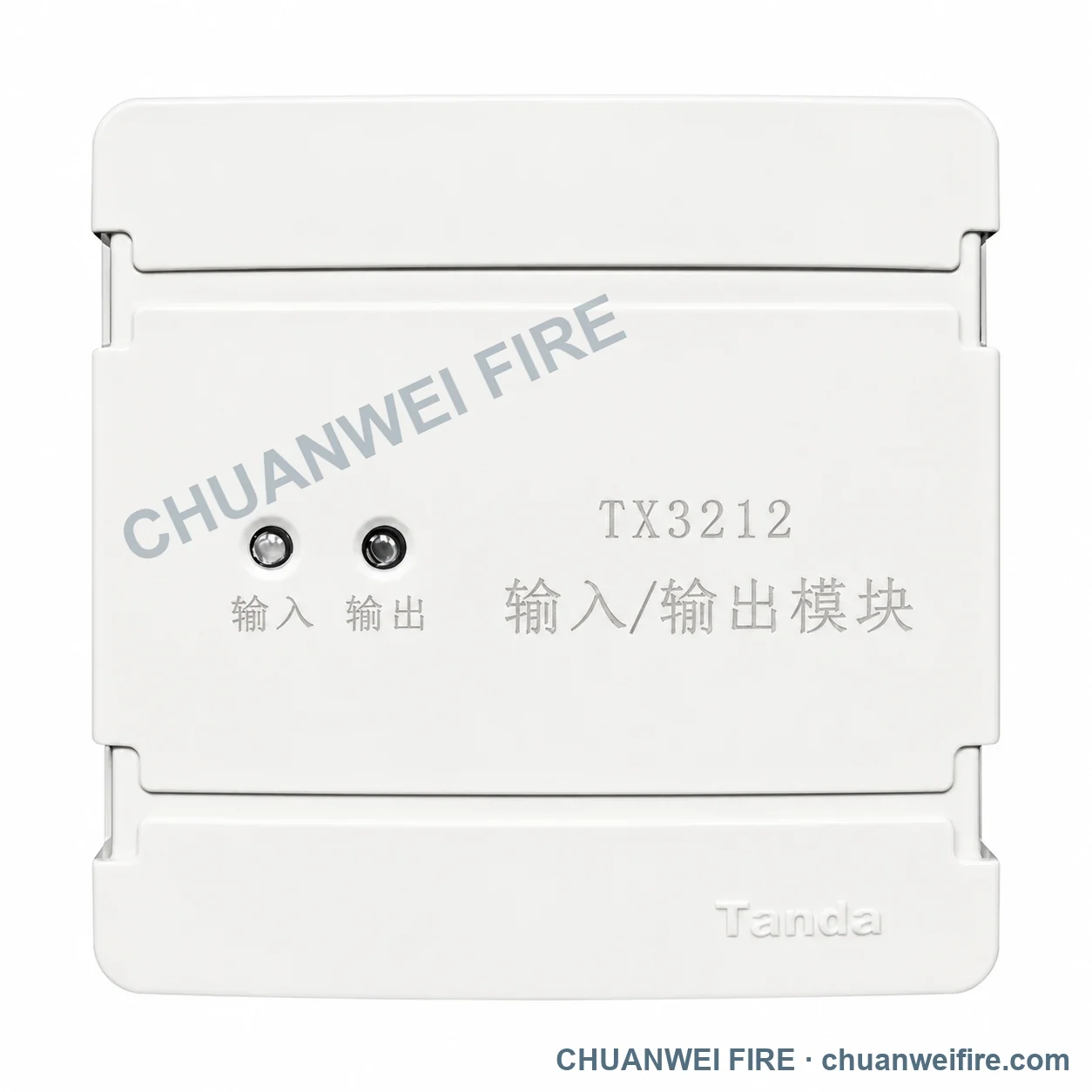

Tanda input/output modules for compatible fire alarm control interfaces. The supplied TX3212 configuration uses a plug-in base; electrical interfaces must be matched to the connected equipment.
Provide the control panel model, protocol and existing device references so compatibility can be checked before supply.
Product gallery
Product views
Select an image to view the pictured product or configuration.
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Product brand
- Tanda
- Product type
- Fire alarm input/output module
- Interface functions
- One input and one output
- Base arrangement
- TX3212DZ plug-in base
- Bus protocol
- T3
- Bus voltage
- 15–28 V pulsed
- External power supply
- 24 V DC nominal; 20–28 V DC
- Normally open output contact
- 30 V DC / 2.0 A
- Feedback input
- Dry contact; normally open or normally closed configuration
- Addressing
- One bus address; electronic coding 1–242
- Dimensions including base
- 86 × 86 × 33 mm
- Operating temperature
- −10 to +55 °C
- Relative humidity
- ≤95% RH, non-condensing
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| Input/output module | TX3212 | T3 bus; separate 24 V DC supply; 30 V DC / 2.0 A normally open output contact. |
