Fire Pumps & Control Cabinets
Dual Power Control Cabinets
The JX-ATS-63A is a dual power control cabinet with a cold rolled steel enclosure and a documented 380 V supply.
JX-ATS-63A
Dual power supply control
380 V
Send both supply specifications, connected load and the required changeover sequence.
Product gallery
Product views
Select an image to view the pictured product or configuration.

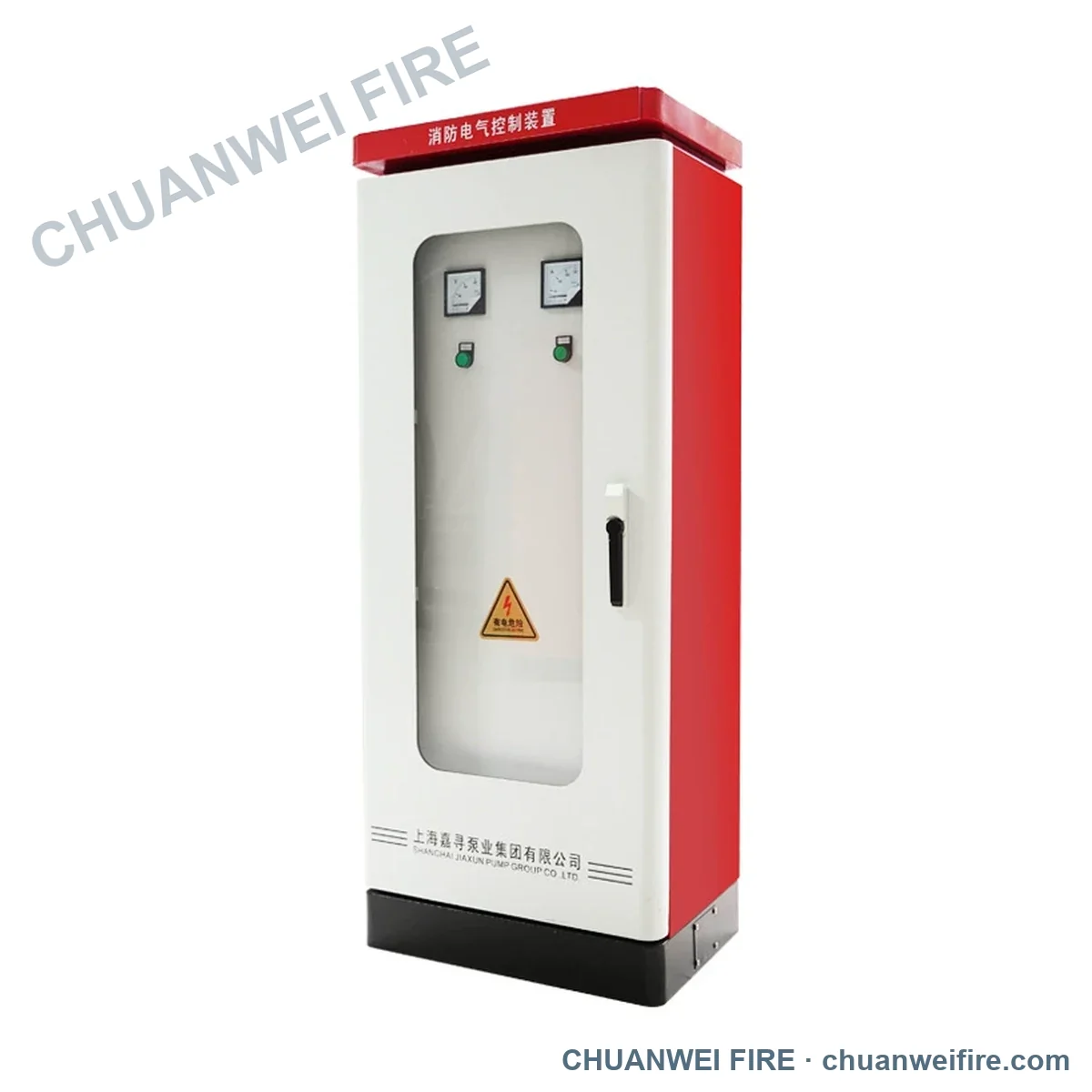

JX-ATS-63A dual power control cabinet.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Model
- JX-ATS-63A
- Cabinet function
- Dual power supply control
- Supply voltage
- 380 V
- Enclosure
- Cold rolled steel
- JX-ATS-63A cabinet dimensions
- 1200 × 600 × 400 mm
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| JX-ATS-63A dual power cabinet | JX-ATS-63A | 380 V; electrical arrangement specified to the approved control schematic. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Power arrangementSend both supply specifications, connected load and the required changeover sequence.
Cabinet configurationProvide the control schematic, site frequency, installation dimensions and required enclosure protection.
Request product details and a quotation
Send your selected configuration, quantity and destination.
