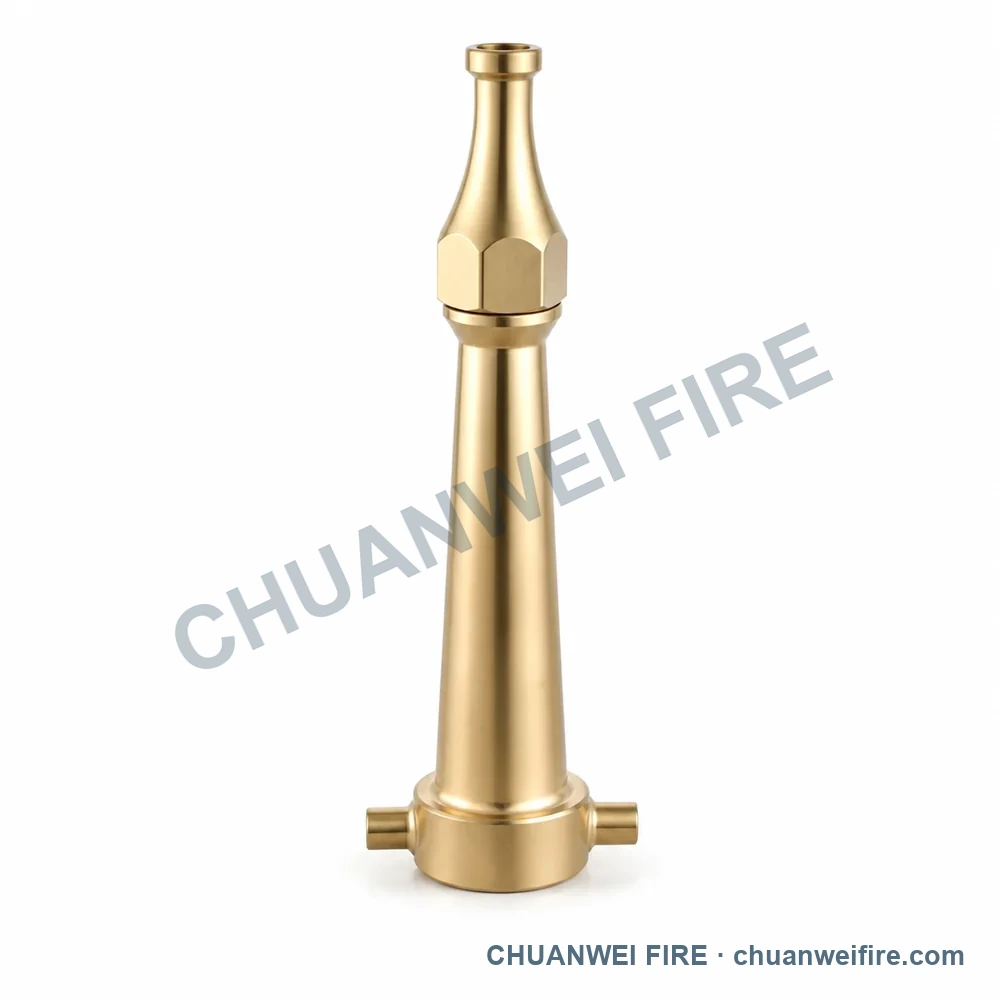

Slim Long Double-Lug Fire Hose Nozzle — UN-062
Connection or dimension references: inlet 1.5 in NH
5 configurations to compare
Coupled and Lever-Operated Fire Hose Nozzles
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Configuration images are illustrations. Request the product photo, connection and performance details for your selected configuration before ordering.
Available configurations
Segmented Claw-Coupled Fire Hose Nozzle — DN-030 / DN-031 / DN-032
Connection or dimension references: inlet 1.5 in · inlet 2 in · inlet 2.5 in
Disc-Base Shutoff Fire Hose Nozzle — DN-010 / DN-011 / DN-012
Connection or dimension references: inlet 1.5 in · inlet 2 in · inlet 2.5 in
Plug-In Shutoff Fire Hose Nozzle — GN-020 / GN-021
Connection or dimension references: inlet 2 in · inlet 2.5 in
Side-Handle Compact Fire Hose Nozzle — NP-033
Connection or dimension references: inlet Ø19 mm; outlet Ø6 mm; alternate 1 in / Ø8 mm
Configuration images
5 configurations to compare
Illustrations for comparing available configurations. Request the product photo and drawing for your selected configuration to confirm connections and dimensions.
Slim Long Double-Lug Fire Hose Nozzle — UN-0621 / 5
Specifications
Product selection details
Compare connection and dimension references to choose your configuration. Final order specifications are confirmed with the quotation.
- Product family
- Coupled and Lever-Operated Fire Hose Nozzles
- Available configurations
- 5 illustrated configurations
Available configurations
Configurations and connection references
Compare the configuration and connection or dimension references in each row.
| Configuration | Connection or dimension references |
|---|---|
| Slim Long Double-Lug Fire Hose Nozzle — UN-062 | inlet 1.5 in NH |
| Segmented Claw-Coupled Fire Hose Nozzle — DN-030 / DN-031 / DN-032 | inlet 1.5 in · inlet 2 in · inlet 2.5 in |
| Disc-Base Shutoff Fire Hose Nozzle — DN-010 / DN-011 / DN-012 | inlet 1.5 in · inlet 2 in · inlet 2.5 in |
| Plug-In Shutoff Fire Hose Nozzle — GN-020 / GN-021 | inlet 2 in · inlet 2.5 in |
| Side-Handle Compact Fire Hose Nozzle — NP-033 | inlet Ø19 mm; outlet Ø6 mm; alternate 1 in / Ø8 mm |
Quotation confirmation
Confirm the configuration before production
Start with the configuration and quantity. Add size, connection, working pressure and destination when available; we will review the supply details with you.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Coupled and Lever-Operated Fire Hose Nozzles requirement
Start with the configuration and quantity. Size, connection and project requirements can follow.
