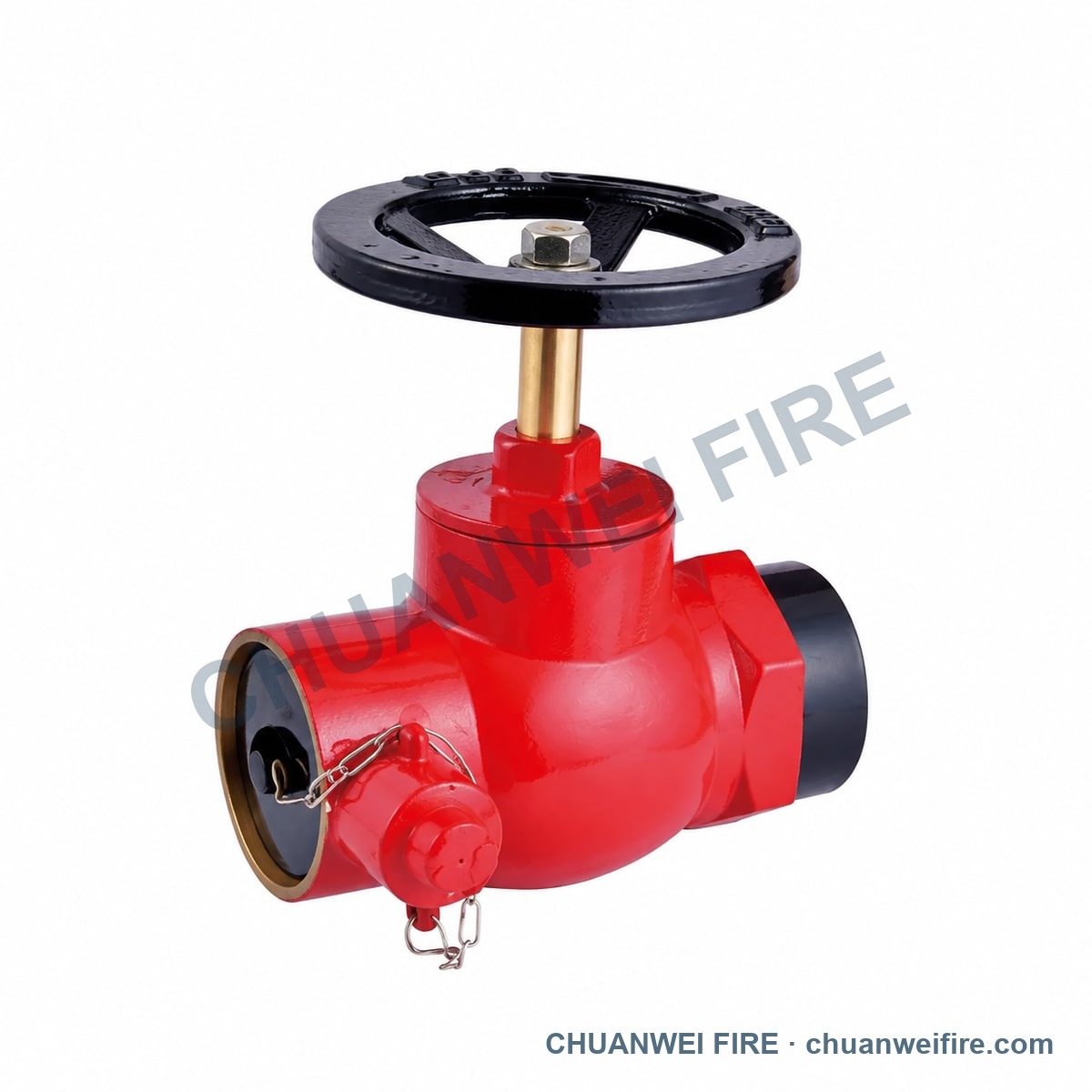

Straight-through
Selection reference: HS-031
Inlet: 2.5 in NPT
Outlet: 2.5 in BS336
Three body and inlet configurations
Straight-Through and Oblique Landing Valves
Straight-through, oblique threaded and oblique flanged landing-valve configurations for indoor fire-hose outlet selection.
Straight-through · oblique threaded · oblique flanged
2.5 in NPT / BSP / BSPT / BS4504
2.5 in BS336
Selection references only · final specification by quotation
HS codes are selection references. Match the inlet, outlet and required working pressure with your quotation.
Available configurations
Oblique threaded
Selection reference: HS-011
Inlet: 2.5 in BSP
Outlet: 2.5 in BS336
Selection reference: HS-012
Inlet: 2.5 in BSP / BSPT
Outlet: 2.5 in BS336
Selection reference: HS-013
Inlet: 2.5 in NPT
Outlet: 2.5 in BS336
Oblique flanged
Selection reference: HS-020
Inlet: 2.5 in BS4504
Outlet: 2.5 in BS336
Configuration images
Three configuration illustrations
Illustrations of straight-through, oblique threaded and oblique flanged configurations. Request the product photo and connection drawing for your selected version.
Straight-through1 / 3
Specifications
Product selection details
Compare the body configurations and connection references below. Construction and performance details are confirmed for your selected configuration with the quotation.
- Product family
- Indoor fire-hose landing-valve configurations
- Available configurations
- Straight-through · oblique threaded · oblique flanged
- Catalog inlet options
- 2.5 in NPT / BSP / BSPT / BS4504
- Catalog common outlet
- 2.5 in BS336
- Selection references
- HS-031 · HS-011 · HS-012 · HS-013 · HS-020
- Connection customization
- BSP and BSPT options available; custom connections on request
- Working pressure options
- 1.6 MPa / 16 bar; 2.5 MPa / 25 bar
Available selections
Configurations and connection options
Choose the body arrangement and inlet. The listed outlet connection is 2.5 in BS336; confirm the mating coupling for your order.
| Configuration | Selection reference | Inlet | Outlet |
|---|---|---|---|
| Straight-through | HS-031 | 2.5 in NPT | 2.5 in BS336 |
| Oblique threaded | HS-011 | 2.5 in BSP | 2.5 in BS336 |
| Oblique threaded | HS-012 | 2.5 in BSP / BSPT | 2.5 in BS336 |
| Oblique threaded | HS-013 | 2.5 in NPT | 2.5 in BS336 |
| Oblique flanged | HS-020 | 2.5 in BS4504 | 2.5 in BS336 |
Quotation confirmation
Lock the exact ordered configuration
Send the selected arrangement and interface requirement so the quotation can confirm the factory model, materials, pressure class, mating components and accessories.
Configuration and connectionSpecify straight-through, oblique threaded or oblique flanged, plus the required inlet and outlet interfaces.
Pressure and materialSpecify the required working-pressure option: 1.6 MPa / 16 bar or 2.5 MPa / 25 bar. Confirm availability for the selected model, connection, material and finish. Test-pressure details are supplied separately for the exact configuration.
Mating componentsConfirm the destination-market coupling, flange drilling, cap, chain and accessory requirements.
Order informationProvide quantity, destination, packing and required documents.
Send your landing-valve requirement
Start with the straight-through or oblique configuration and quantity. Add inlet and outlet interfaces, system pressure and destination when available.
