Grooved Pipe Fittings
Grooved Reducing Tees
Ductile iron reducing tees connect a smaller branch to a grooved pipe run. Each listed option preserves the main and branch nominal sizes together with their matching pipe outside diameters.
Ductile iron
Reducing branch tee
Grooved
Specify both nominal DN and actual pipe outside diameter, with the mating groove profile or drawing.
Product gallery
Product views
Select an image to view the pictured product or configuration.

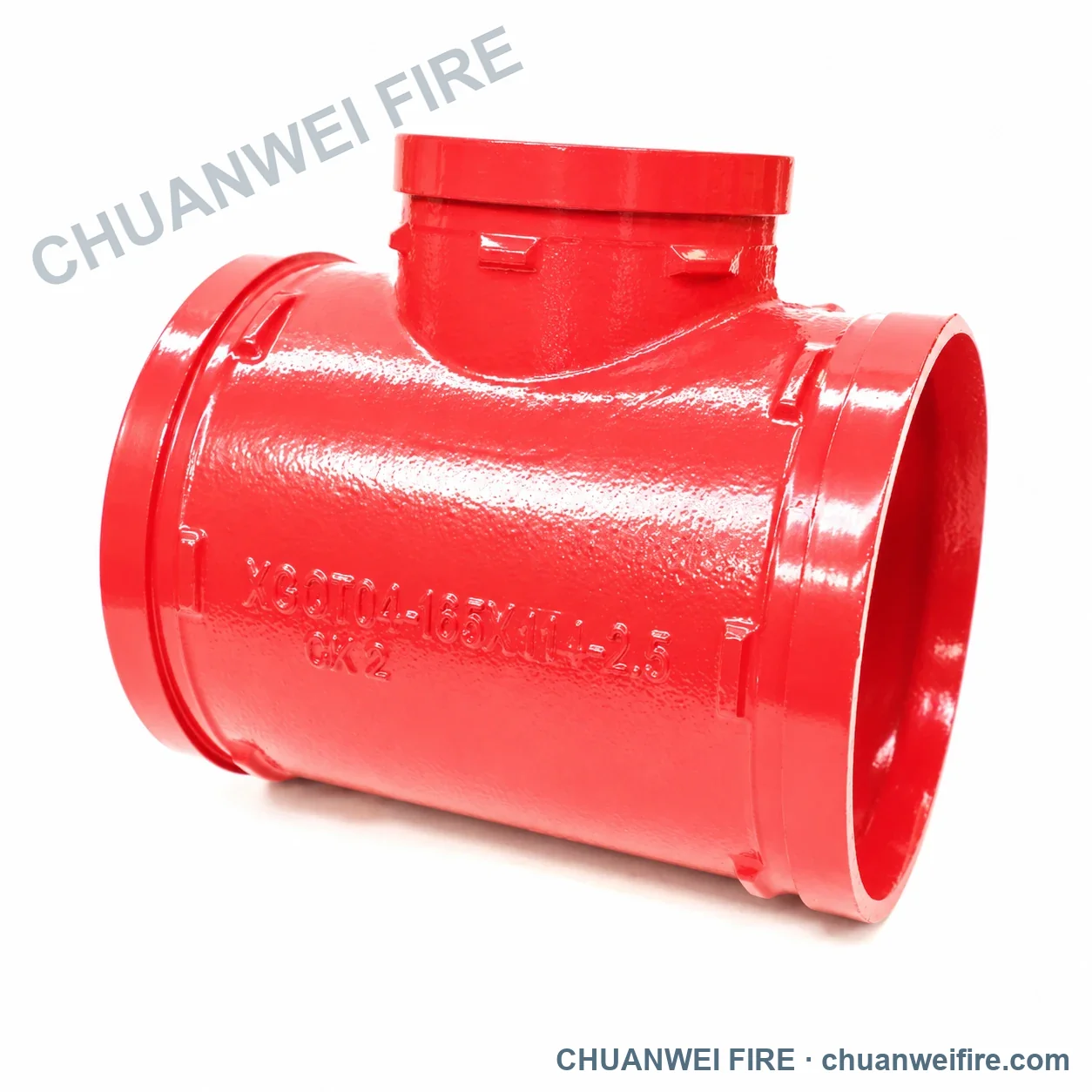

Grooved reducing tee with a smaller branch connection.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Material
- Ductile iron
- Configuration
- Reducing branch tee
- Connection
- Grooved
- Main nominal sizes
- DN80 / DN100 / DN125 / DN150 / DN200
- Listed combinations
- 19 main/branch and pipe OD combinations
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Selection details |
|---|---|
| DN80 x DN50 · Pipe OD 89 x 60 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN80 x DN65 · Pipe OD 89 x 76 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN100 x DN50 · Pipe OD 114 x 60 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN100 x DN65 · Pipe OD 114 x 76 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN100 x DN80 · Pipe OD 114 x 89 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN125 x DN50 · Pipe OD 140 x 60 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN125 x DN65 · Pipe OD 140 x 76 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN125 x DN80 · Pipe OD 140 x 89 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN125 x DN100 · Pipe OD 140 x 114 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN150 x DN50 · Pipe OD 165 x 60 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN150 x DN65 · Pipe OD 165 x 76 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN150 x DN80 · Pipe OD 165 x 89 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN150 x DN100 · Pipe OD 165 x 114 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN150 x DN125 · Pipe OD 165 x 140 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN200 x DN65 · Pipe OD 219 x 76 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN200 x DN80 · Pipe OD 219 x 89 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN200 x DN100 · Pipe OD 219 x 114 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN200 x DN125 · Pipe OD 219 x 140 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN200 x DN150 · Pipe OD 219 x 165 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Pipe and groove dimensionsSpecify both nominal DN and actual pipe outside diameter, with the mating groove profile or drawing.
Branch arrangementProvide the main and branch sizes, required flow direction and operating pressure.
Request product details and a quotation
Send your selected configuration, quantity and destination.
