Grooved Pipe Fittings
Grooved Concentric Reducers

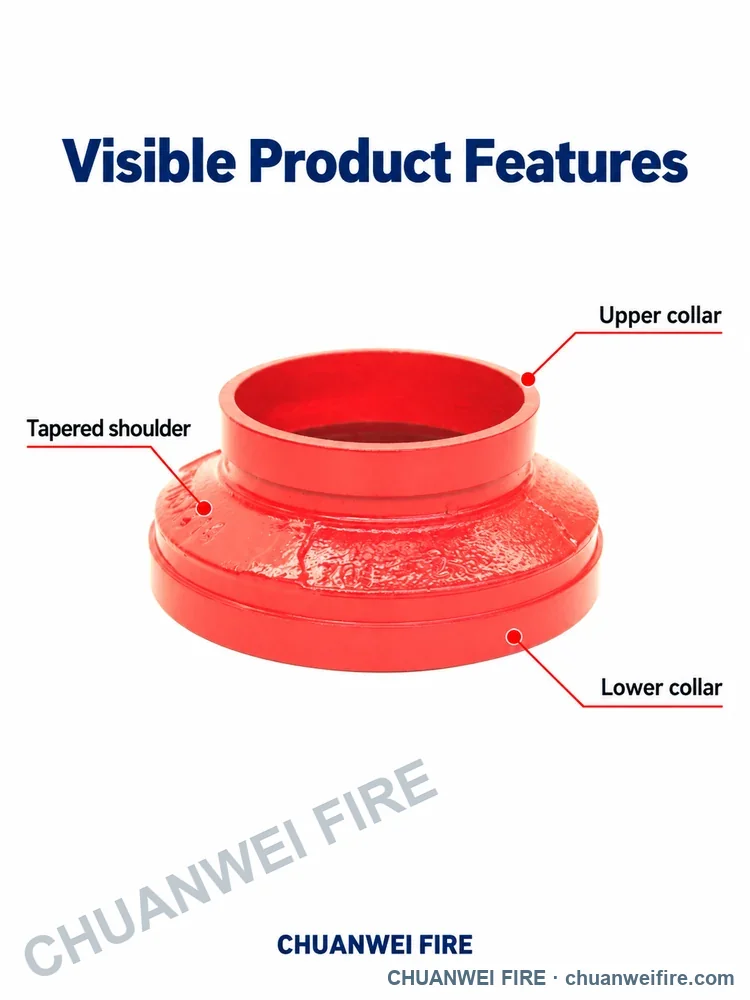

Grooved concentric reducers connect two different pipe diameters through a centered transition. The red ductile iron body has a larger opening and a smaller opening with grooved end connections.
Concentric reducer
Grooved ends
Match the actual pipe dimensions and connection drawing when ordering. Size-specific dimensions and pressure data are available on request.
Product gallery
Product views
View the actual product photograph and the supporting feature illustration.

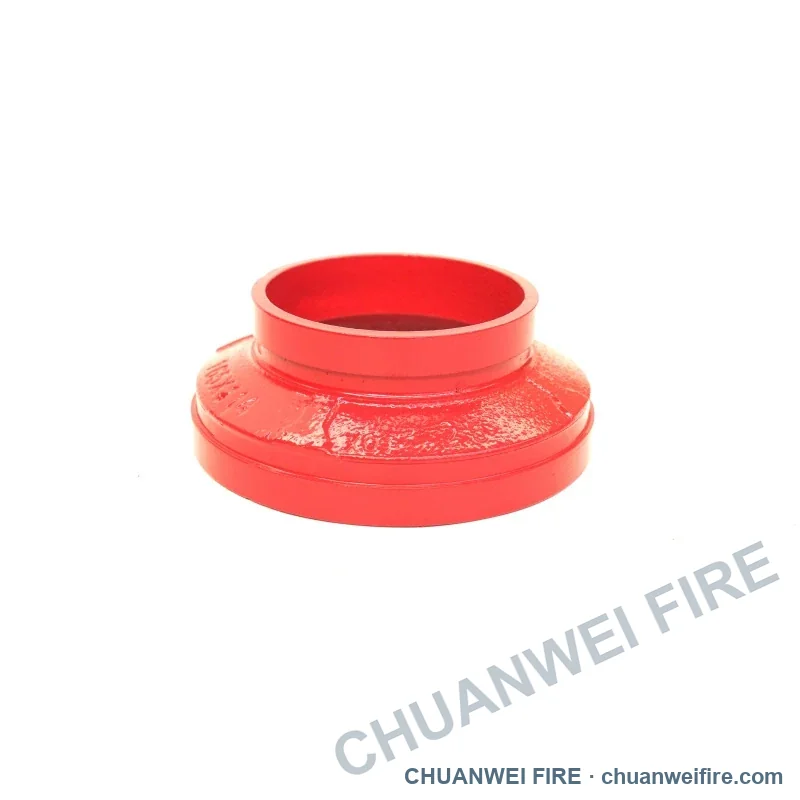

Red concentric reducer — actual product photograph1 / 2
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Configuration
- Concentric reducer
- Connection
- Grooved ends
- Body material
- Ductile iron
- Application
- Fire protection water piping
- Origin
- Fujian, China
- Customization
- Available
- Nominal size pair / pipe outside diameter pair
- DN80 × DN50 / 89 × 60 mm; DN80 × DN65 / 89 × 76 mm; DN100 × DN50 / 114 × 60 mm; DN100 × DN65 / 114 × 76 mm; DN100 × DN80 / 114 × 89 mm; DN125 × DN50 / 140 × 60 mm; DN125 × DN65 / 140 × 76 mm; DN125 × DN80 / 140 × 89 mm; DN125 × DN100 / 140 × 114 mm; DN150 × DN50 / 165 × 60 mm; DN150 × DN65 / 165 × 76 mm; DN150 × DN80 / 165 × 89 mm; DN150 × DN100 / 165 × 114 mm; DN150 × DN125 / 165 × 140 mm; DN200 × DN80 / 219 × 89 mm; DN200 × DN100 / 219 × 114 mm; DN200 × DN125 / 219 × 140 mm; DN200 × DN150 / 219 × 165 mm
Models & configurations
Models & configurations
The pictured configuration is available for quotation. Send the connection and service requirements below.
| Configuration | Selection details |
|---|---|
| Concentric reducer | Large-end and small-end pipe outside diameters, groove profile and quantity. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Connection and selectionLarge-end and small-end pipe outside diameters, groove profile and quantity.
Service and customizationSend the service requirements, quantity and destination. Customization is available; details are reviewed against your order.
Request product details and a quotation
Send your selected configuration, quantity and destination.
