Grooved Pipe Fittings
Rigid Grooved Pipe Couplings
Bolted rigid couplings join compatible grooved pipe ends. Compare the XGQT size range and the additional split-housing configuration below. Specify the pipe dimensions and gasket requirements when ordering.
Ductile iron
DN50 / DN65 / DN80 / DN100 / DN125 / DN150 / DN200
10
Specify both nominal DN and actual pipe outside diameter, with the mating groove profile or drawing.
Product gallery
Product views
Select an image to view the pictured product or configuration.

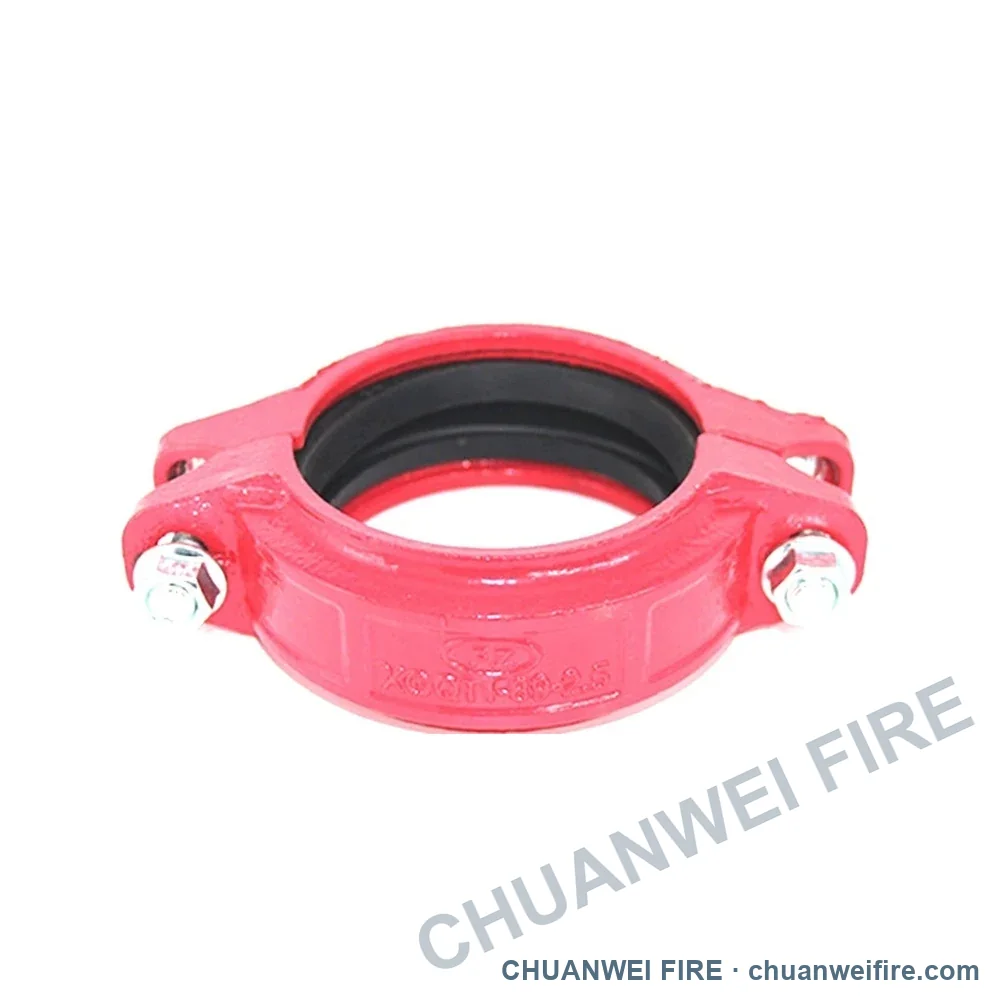

XGQT reference coupling; listed DN and pipe OD options apply to this range.1 / 2
Specifications
Product specifications
Use the specifications together with the configuration table below.
- XGQT housing material
- Ductile iron
- XGQT listed nominal sizes
- DN50 / DN65 / DN80 / DN100 / DN125 / DN150 / DN200
- XGQT size and OD combinations
- 10
- Separate coupling housing
- Ductile iron bolted split housing
- Connection function
- Join compatible grooved pipe ends
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Selection details |
|---|---|
| XGQT · DN50 · Pipe OD 60 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN65 · Pipe OD 76 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN80 · Pipe OD 89 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN100 · Pipe OD 108 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN100 · Pipe OD 114 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN125 · Pipe OD 133 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN125 · Pipe OD 140 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN150 · Pipe OD 159 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN150 · Pipe OD 165 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| XGQT · DN200 · Pipe OD 219 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |

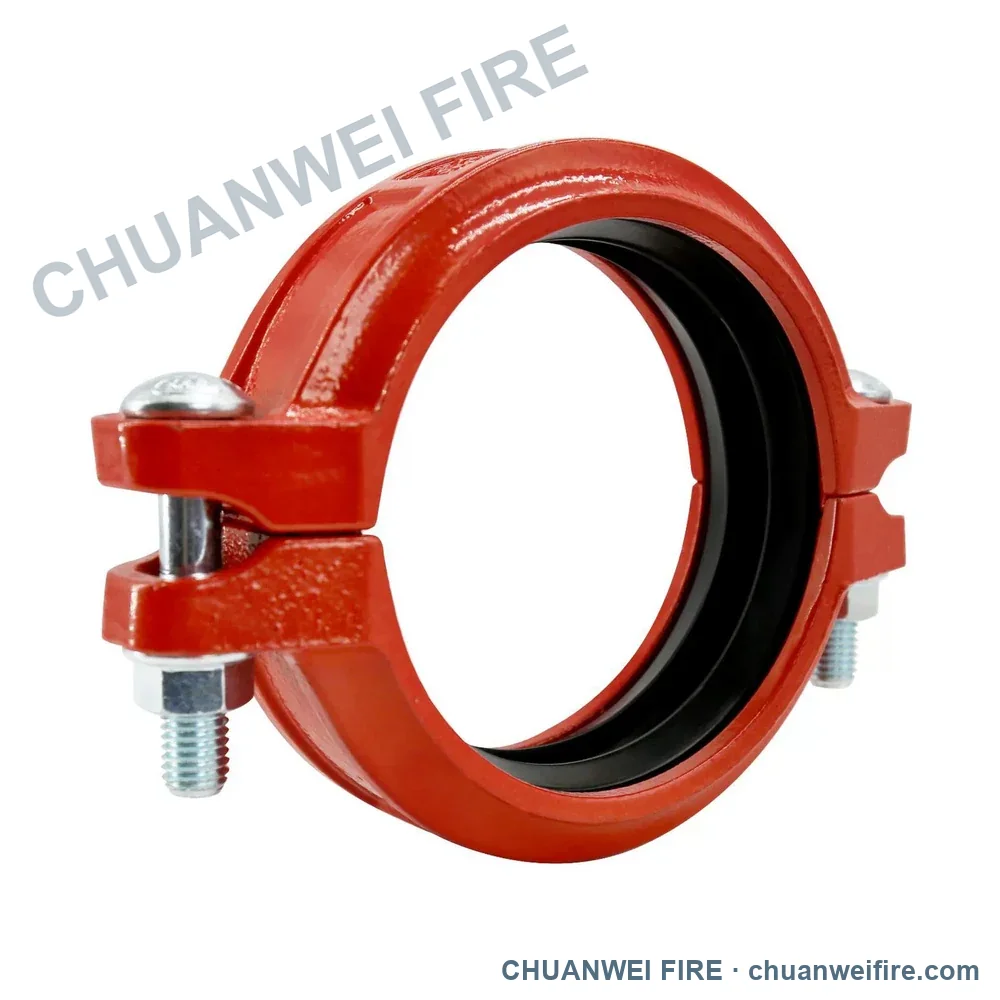

| Additional bolted coupling | Ductile iron split housing. Specify the housing dimensions, groove profile and gasket requirements. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Pipe and groove dimensionsSpecify both nominal DN and actual pipe outside diameter, with the mating groove profile or drawing.
Coupling and gasket configurationIdentify the XGQT range or the separate reference coupling and specify the gasket compound, pressure and required assembly details.
Request product details and a quotation
Send your selected configuration, quantity and destination.
