WIKA 910.15
- Horizontal pressure tapping
- U-form
- Vertical pressure tapping
- Trumpet form
Select a pressure–temperature rating for the exact material and connection; temperature and pressure maxima are not interchangeable.
Accessories
Pressure Gauge Syphon Tubes
Coiled stainless steel tube accessories for pressure gauge connection assemblies. A syphon can serve as a cooling element between a hot process and the gauge. Material options are 201, 304 and 316L; select the thread and coil arrangement for the installation.
Coiled pressure gauge connection tube
201 / 304 / 316L stainless steel
M14x1.5 / M20x1.5
Choose 201, 304 or 316L and supply the required thread and end arrangement drawing.
Product gallery
Product views
Select an image to view the pictured product or configuration.

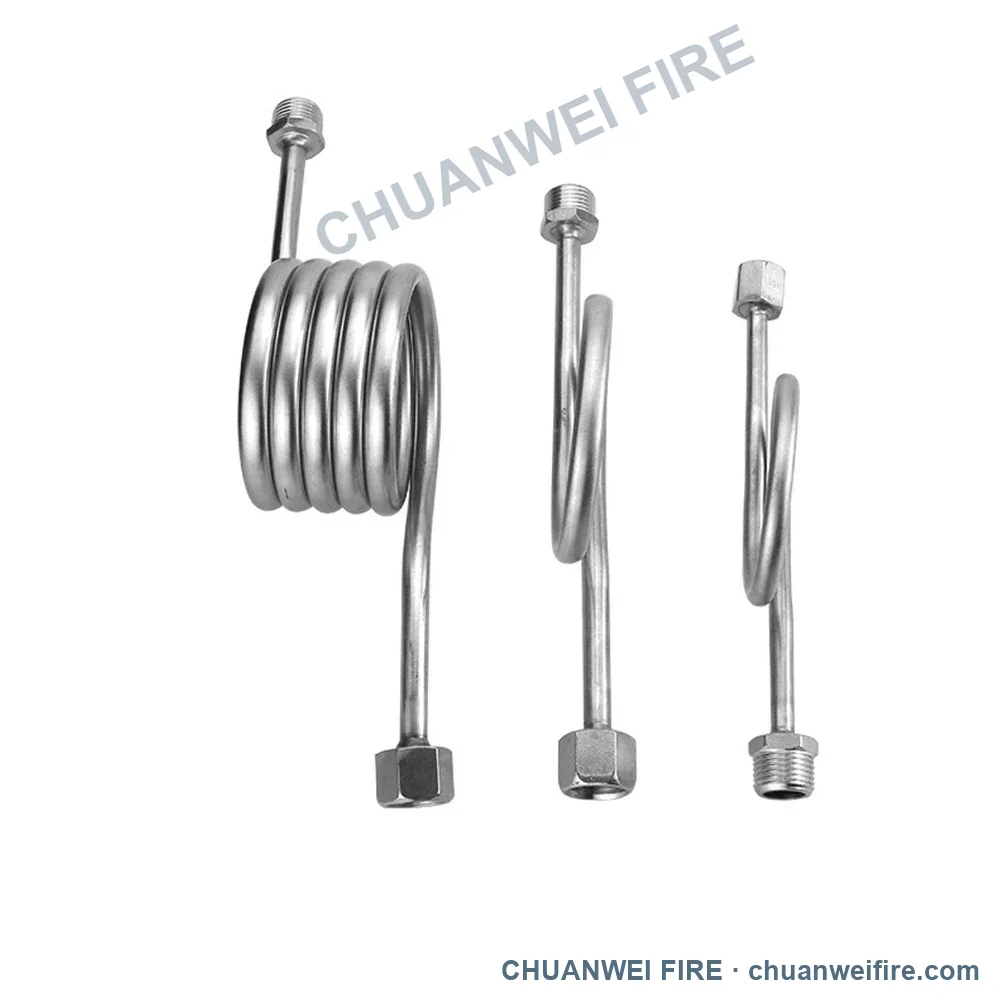

Coiled syphon tube reference for pressure gauge connections.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Accessory type
- Coiled pressure gauge connection tube
- Material options
- 201 / 304 / 316L stainless steel
- Listed thread options
- M14x1.5 / M20x1.5
- End arrangement shown
- Threaded fittings on coiled tube forms
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Selection details |
|---|---|
| 201 stainless steel | Specify the thread, coil form and end arrangement for this material option. |
| 304 stainless steel | Specify the thread, coil form and end arrangement for this material option. |
| 316L stainless steel | Specify the thread, coil form and end arrangement for this material option. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Material and end connectionsChoose 201, 304 or 316L and supply the required thread and end arrangement drawing.
Dimensions and serviceSpecify installation space, coil dimensions, operating pressure and process temperature.
Request product details and a quotation
Send your selected configuration, quantity and destination.
