Jiaxun horizontal single-stage series
- Series flow range
- 10–100 L/s
- Series head range
- 35–150 m
These catalogue ranges span multiple models; maximum flow and maximum head are not one duty point. Select the offered pump using its performance curve.
Fire Pumps & Control Cabinets
Horizontal Single-Stage Fire Pumps
Horizontal single-stage fire pumps transfer water for fire protection supply. The pictured cast iron pump casing and electric motor share a baseplate, with an axial inlet flange and an outlet flange above the casing.
Horizontal single-stage electric pump
Flanged inlet and outlet
Select the pump by its required duty point and installation drawing. Model-specific performance data are available on request.
Product gallery
Product views
View the actual product photograph and the supporting feature illustration.

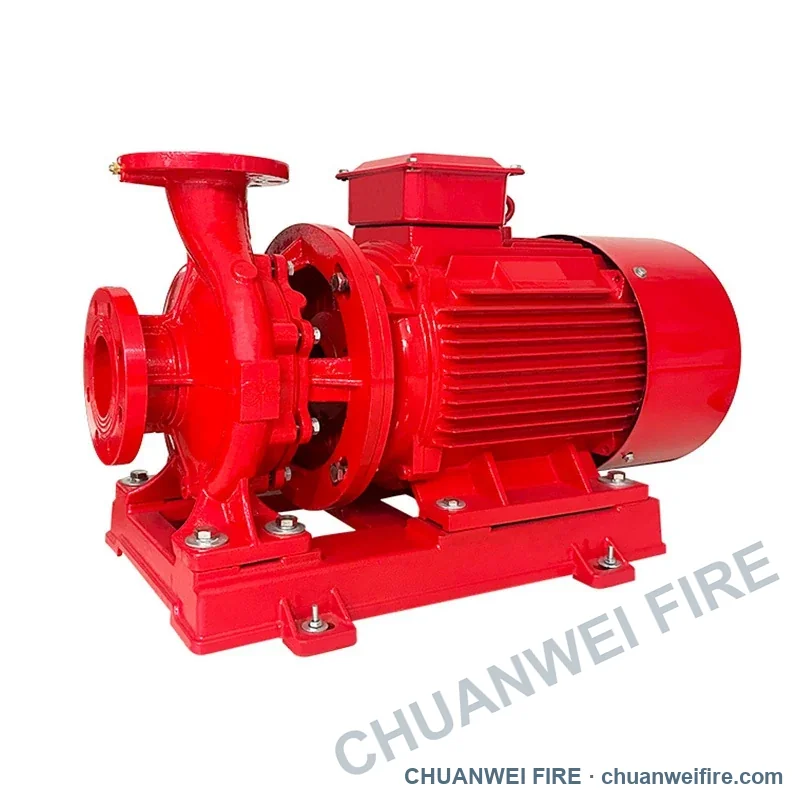

Horizontal pump and motor on a common baseplate — actual product photograph1 / 2
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Configuration
- Horizontal single-stage electric pump
- Connection
- Flanged inlet and outlet
- Body material
- Cast iron pump casing
- Application
- Fire water supply systems
- Origin
- Fujian, China
- Customization
- Available
Models & configurations
Models & configurations
The pictured configuration is available for quotation. Send the connection and service requirements below.
| Configuration | Selection details |
|---|---|
| Horizontal single-stage electric pump | Required flow and head, voltage and frequency, flange drawing, installation space and quantity. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Pump duty point and installationProvide the required flow and head at the same duty point, together with suction conditions and the installation drawing. Pump selection uses the performance curve; maximum flow and maximum head are not a simultaneous operating point.
Service and customizationSend the service requirements, quantity and destination. Customization is available; details are reviewed against your order.
Request product details and a quotation
Send your selected configuration, quantity and destination.
