K115 Metric · Standard response · Concealed pendent
K115 metric standard-response concealed pendent sprinklers. The covered and exposed 68°C samples below belong to this series.
Specify the exact sprinkler model and its matched cover assembly when ordering.
Product images
Compare the 68°C assembly with the sprinkler mechanism shown separately.
Specifications
These specifications apply to the 68°C sample shown. Additional named configurations below have their own specifications.
Available configurations
The pictured concealed sprinkler has a K115 metric flow coefficient, standard response and a 68°C sprinkler temperature rating.
| Factory model | K-factor (metric) | Response type | Operating temperature |
|---|---|---|---|
| ZSTDY115-68°C Q5A | K115 | Standard response | 68°C / 155°F |
Compare the construction and visible markings. Open a photograph to enlarge it; confirm the required configuration with the quotation.
Compare the specifications for each named configuration below. Values apply only to the configuration shown.

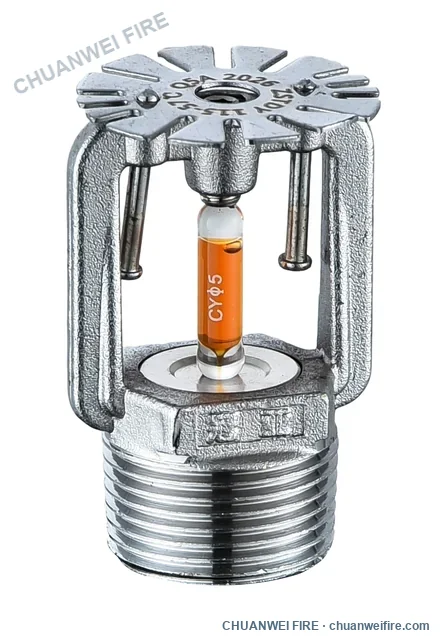

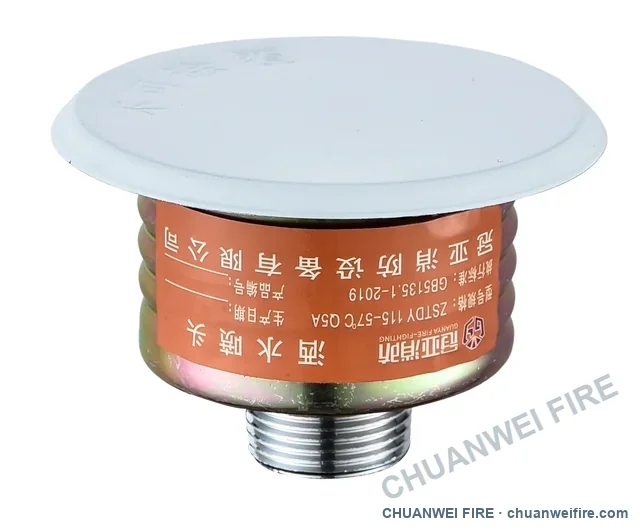

These values apply to the DN20 / K115 standard-response model at 57°C. The sprinkler temperature does not specify the cover release temperature; order a matched cover assembly.

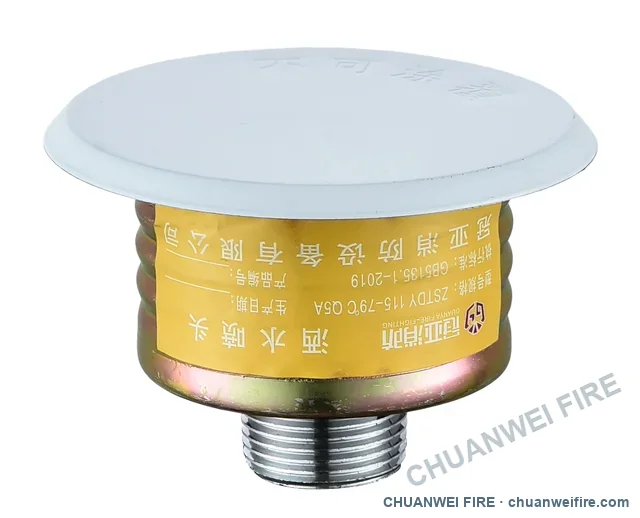

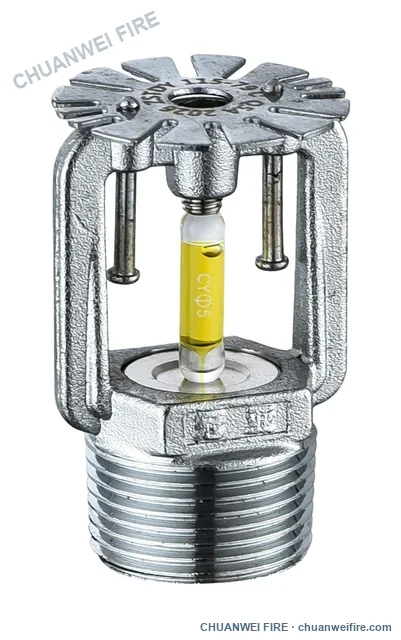

Specifications for this 79°C model. Select the connection size and matched cover assembly with the order.
DN20 nominal size. Specify the thread size and matched cover assembly when ordering.
Quotation details
Send the exact sprinkler model, connection, working pressure, matched cover requirement and quantity.
Include the factory model, connection requirement, working pressure and quantity.
