Liquid-filled Pressure Gauges
The YN100BF is a liquid-filled analog gauge with a stainless steel case, a 100 mm nominal dial and M20x1.5 bottom connection. Case filling helps damp movement caused by vibration. Choose the measuring range for the operating pressure.
YN100BF
Liquid-filled analog gauge
Stainless steel
Specify the required scale range and normal and maximum working pressure; each listed range is a separate gauge option.
Product gallery
Product views
Select an image to view the pictured product or configuration.

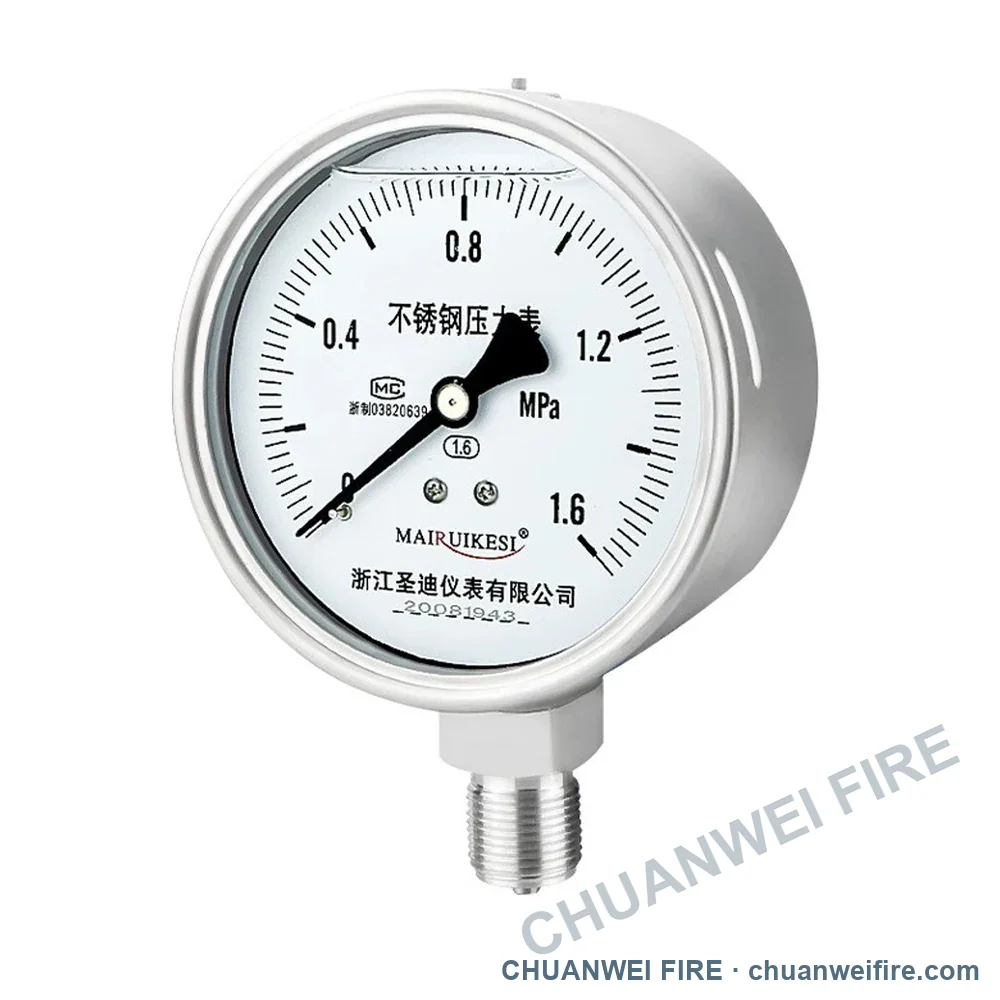

YN100BF liquid-filled gauge with stainless steel case.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Model
- YN100BF
- Type
- Liquid-filled analog gauge
- Case material
- Stainless steel
- Nominal dial diameter
- 100 mm
- Connection
- M20x1.5 bottom connection
- Accuracy class
- 1.6
- Range types
- Positive pressure / vacuum / compound
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| YN100BF · 0…0.1 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…0.1 MPa |
| YN100BF · 0…0.16 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…0.16 MPa |
| YN100BF · 0…0.25 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…0.25 MPa |
| YN100BF · 0…0.4 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…0.4 MPa |
| YN100BF · 0…0.6 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…0.6 MPa |
| YN100BF · 0…1 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…1 MPa |
| YN100BF · 0…1.6 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…1.6 MPa |
| YN100BF · 0…2.5 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…2.5 MPa |
| YN100BF · 0…4 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…4 MPa |
| YN100BF · 0…6 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…6 MPa |
| YN100BF · 0…10 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…10 MPa |
| YN100BF · 0…16 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…16 MPa |
| YN100BF · 0…25 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…25 MPa |
| YN100BF · 0…40 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…40 MPa |
| YN100BF · 0…60 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…60 MPa |
| YN100BF · 0…100 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range 0…100 MPa |
| YN100BF · -0.1…0 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…0 MPa |
| YN100BF · -0.1…0.1 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…0.1 MPa |
| YN100BF · -0.1…0.15 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…0.15 MPa |
| YN100BF · -0.1…0.3 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…0.3 MPa |
| YN100BF · -0.1…0.5 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…0.5 MPa |
| YN100BF · -0.1…0.9 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…0.9 MPa |
| YN100BF · -0.1…1.5 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…1.5 MPa |
| YN100BF · -0.1…2.4 MPa | YN100BF | 100 mm dial · M20x1.5 bottom connection · selected range -0.1…2.4 MPa |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Measuring rangeSpecify the required scale range and normal and maximum working pressure; each listed range is a separate gauge option.
Process connection and fluidProvide the mating thread drawing, working fluid, process and ambient temperatures, and required wetted-part material. Specify the case-fill fluid separately from the process fluid.
Request product details and a quotation
Send your selected configuration, quantity and destination.
