Jiaxun vertical single-stage series
- Series flow range
- 1–100 L/s
- Series head range
- 32–150 m
These catalogue ranges span multiple models; maximum flow and maximum head are not one duty point. Select the offered pump using its performance curve.
Fire Pumps & Control Cabinets
Vertical Single-stage Fire Pumps
A vertical single-stage electric pump for hydrant and sprinkler water supply, with a cast iron pump body and opposed flanged ports.
Vertical single stage
Cast iron
Electric motor
Send the required flow and head, the system duty and the proposed installation arrangement.
Product gallery
Product views
Select an image to view the pictured product or configuration.

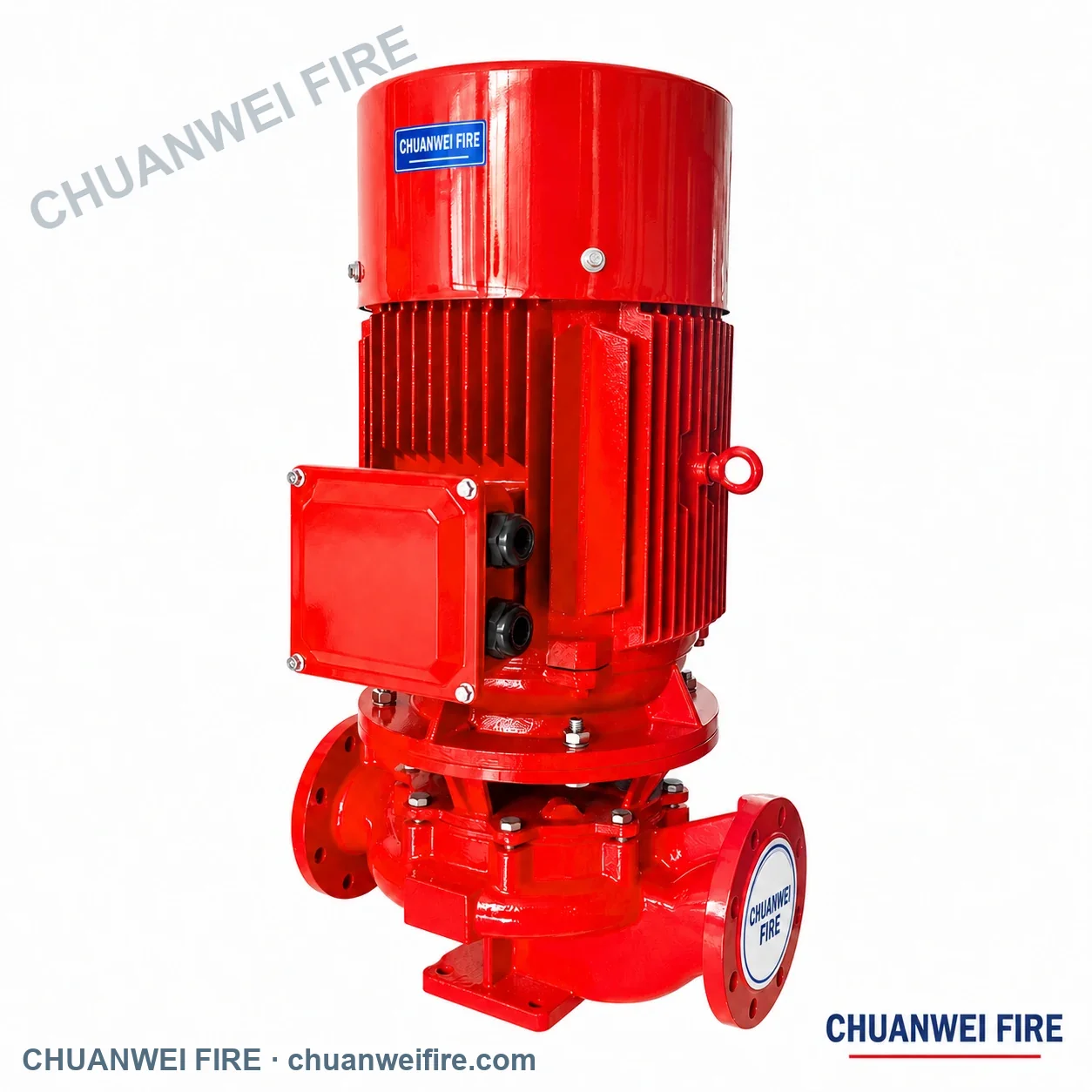

Vertical single-stage pump with the motor above the casing.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Pump construction
- Vertical single stage
- Pump body
- Cast iron
- Drive
- Electric motor
- Connection arrangement
- Opposed inline flanged ports
- Motor position
- Above the pump casing
- Application
- Hydrant and sprinkler water supply
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Selection details |
|---|---|
| Vertical single-stage configuration | Select the exact vertical model against the required duty point and motor data. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Pump duty point and installationProvide the required flow and head at the same duty point, together with suction conditions and the installation drawing. Pump selection uses the performance curve; maximum flow and maximum head are not a simultaneous operating point.
Motor and connectionsSpecify the site voltage and frequency, motor requirements and mating pipe or flange drawings.
Request product details and a quotation
Send your selected configuration, quantity and destination.
