QZ and Russian-pattern configurations
Aluminium-alloy fire hose nozzles with a straight-stream jet. Choose a QZ configuration in DN50 or DN65, or a Russian-pattern configuration in 2 in or 2½ in.
Nominal sizes identify the available selections. Confirm the exact inlet coupling and mating component before ordering.
Product images

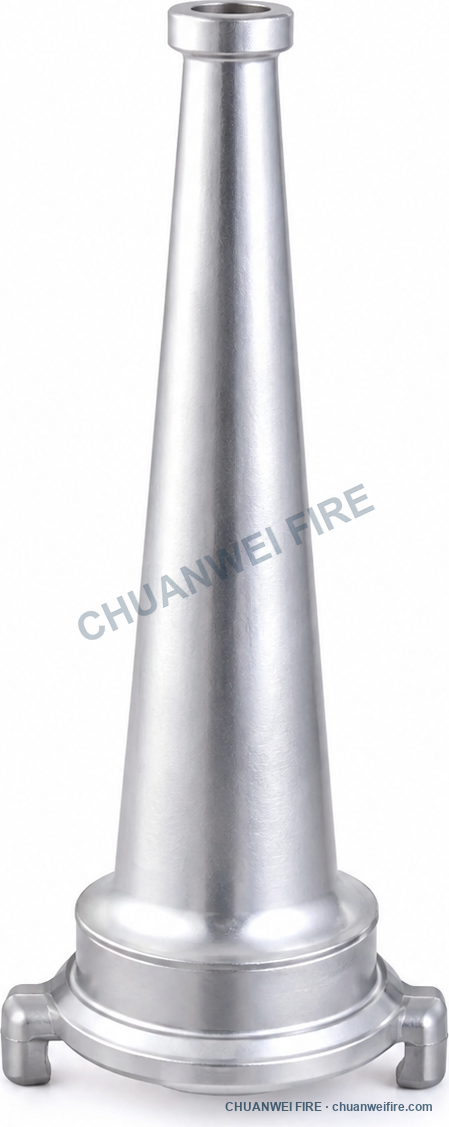

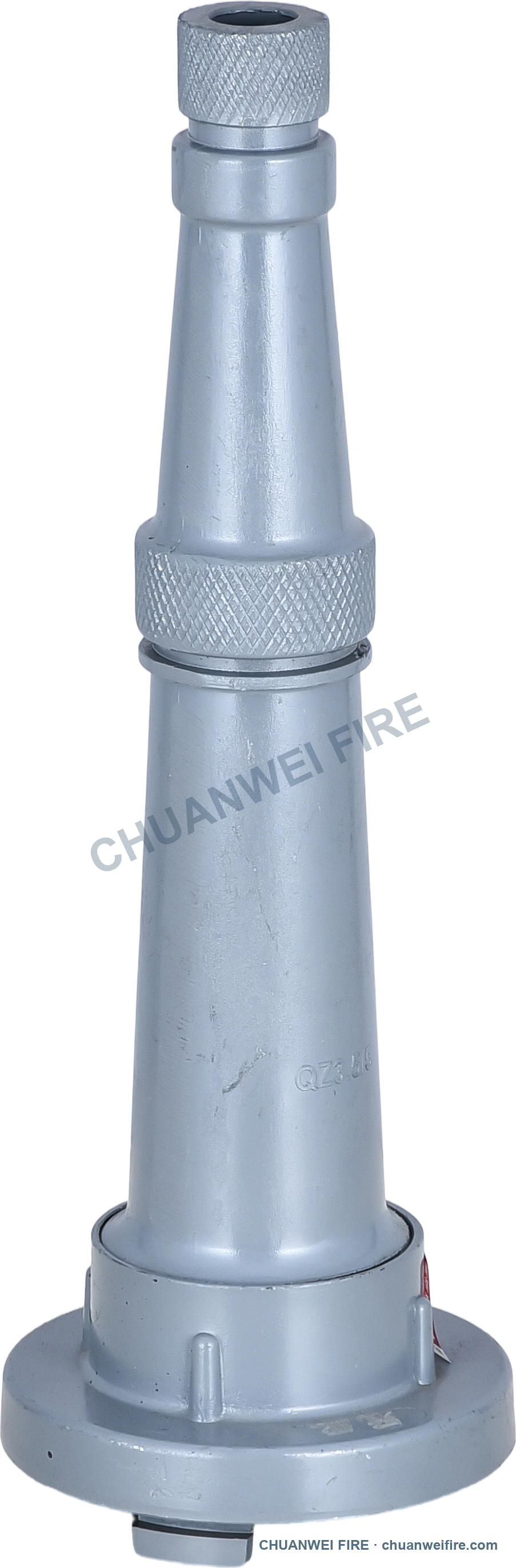

Catalog display images identify each configuration. They are representative views, not dimensional drawings or proof of exact coupling compatibility.
Specifications
Both configurations have an aluminium-alloy body and a straight-stream jet. Confirm the final coupling specification with the quotation.
Available configurations
Each configuration is offered in two nominal sizes. Select the required configuration and size for your inquiry.
| Configuration | Nominal size options | Body material | Jet pattern |
|---|---|---|---|
| QZ configuration | DN50 / DN65 · 2 in / 2½ in | Aluminium alloy | Straight stream |
| Russian-pattern configuration | 2 in / 2½ in | Aluminium alloy | Straight stream |
Compare the specifications for each named configuration below. Values apply only to the configuration shown.
Rated flow below is specified at the rated nozzle pressure, not at a different system pressure.
Confirm the mating connection from the required drawing or sample before ordering.
Rated flow is specified at 0.35 MPa. Working pressure and rated spray pressure describe different operating values.
Confirm the mating connection from the required drawing or sample before ordering.
Rated flow is specified at 0.35 MPa. Working pressure and rated spray pressure describe different operating values.
Confirm the mating connection from the required drawing or sample before ordering.
Quotation confirmation
Send your required configuration, nominal size and mating-coupling details so the quotation can identify the supplied version.
Start with nozzle configuration or nominal size and quantity. Add the mating coupling specification and destination when available.
